Product description

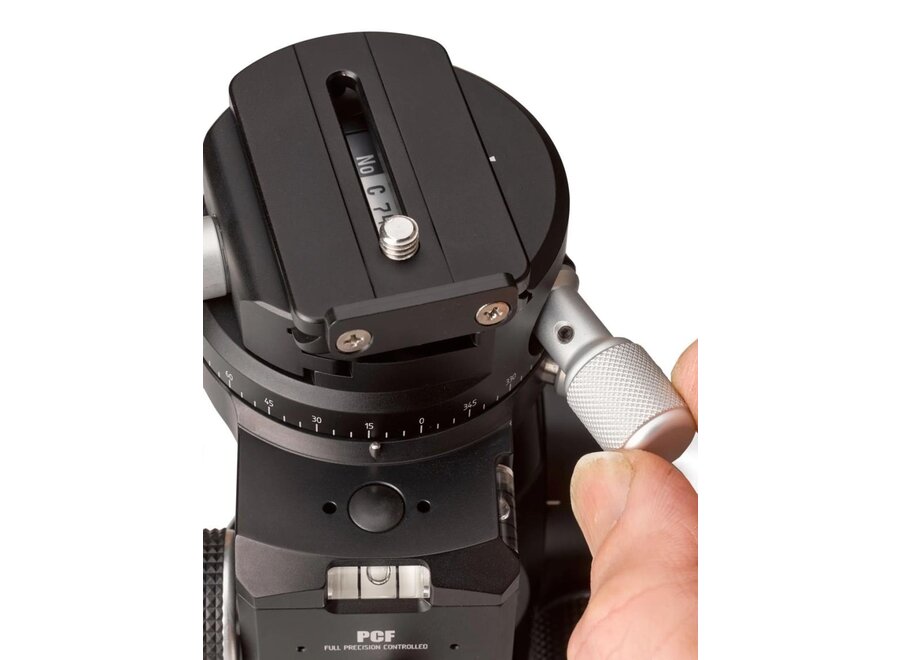

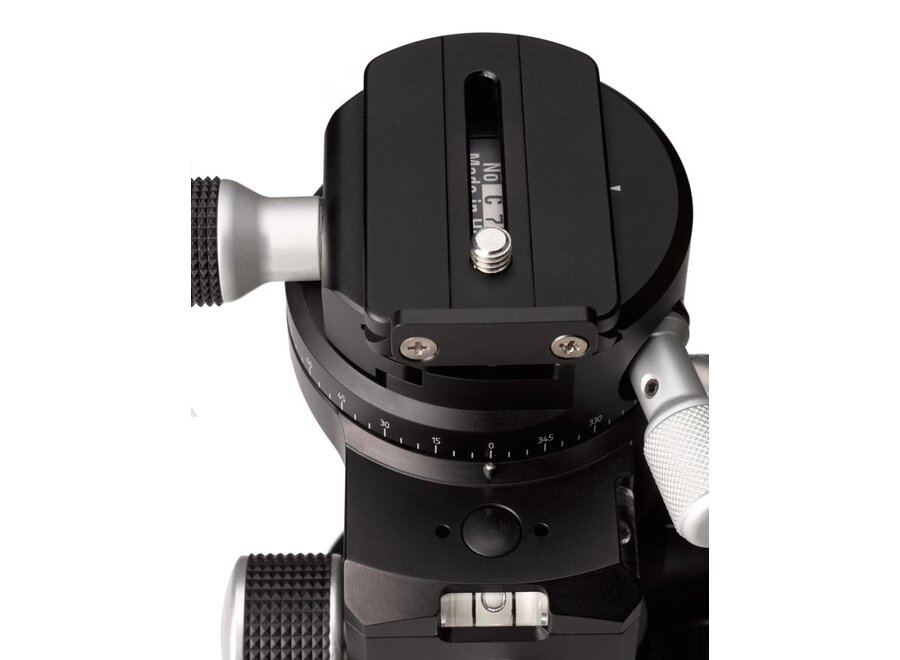

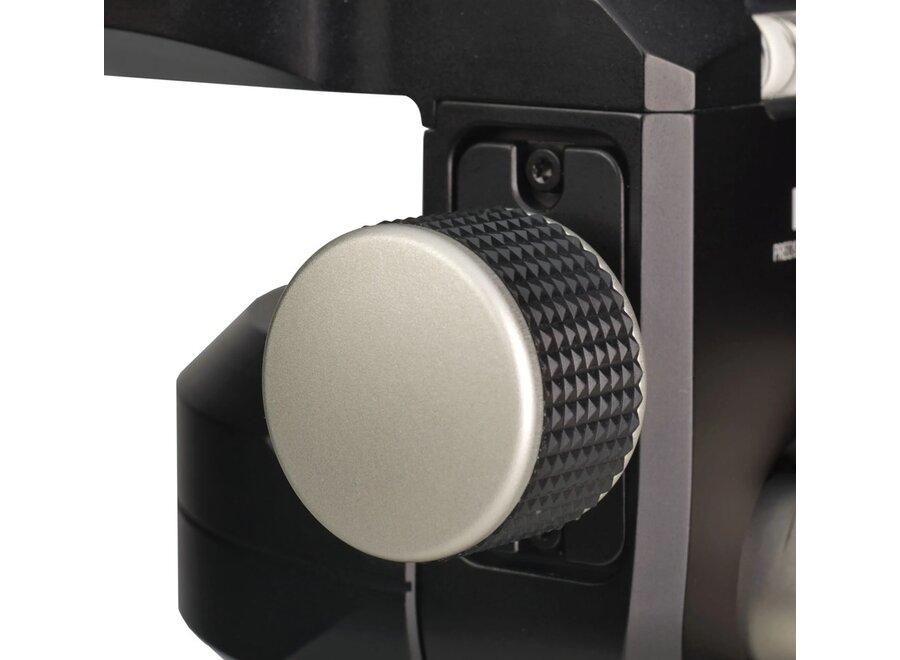

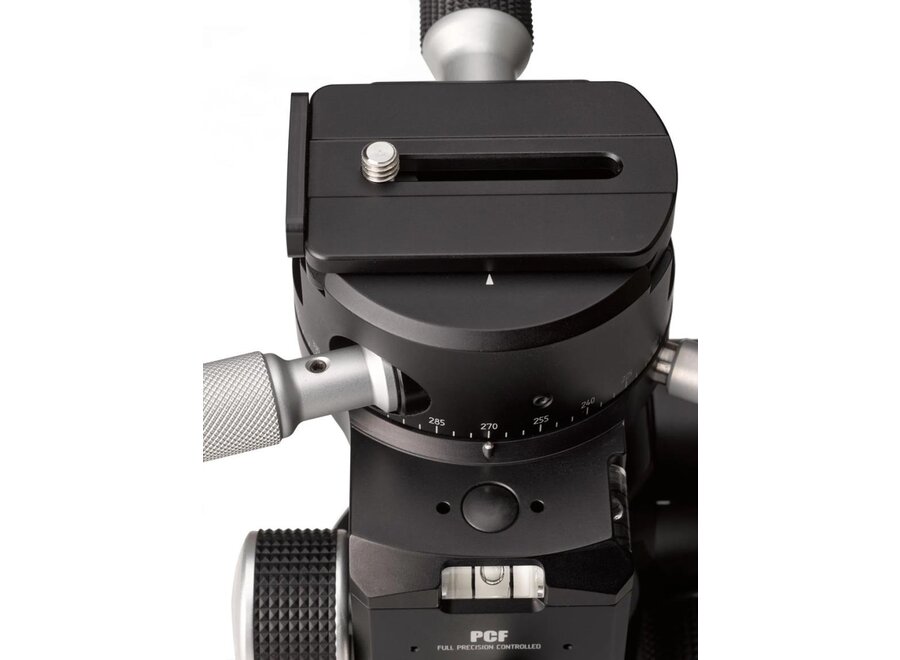

Cambo PCF Camera Head

The PCH and PCF geared heads combine the speed of a ball head with the fine tuning that only fully geared heads can offer.

The geared movements are self-locking and available in any position of the head. Both the bottom and top rotate 360°. After leveling, the top rotation can be used for panoramic shots. The optional QR-XL extra long quick-release plate can be added to facilitate rotation around the node.
Any camera with an ARCA connection can be mounted directly to the PCH. This includes the Cambo ACTUS and Cambo WRS series. The PCH comes with a 1/4" QR plate.

PRODUCT FEATURES: Cambo PCF Camera Head
• 360° gear pan on top
• 360° manual pan on bottom

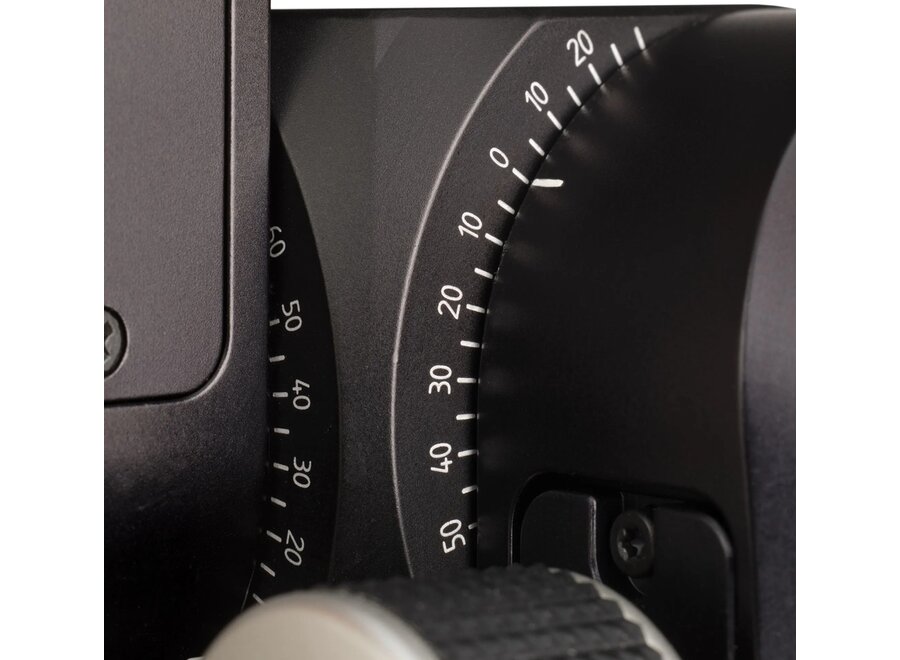

• Position click indication every 90º on top and bottom plate
• 140º X-axis tilt (30º back 110º forward)
• Separate manual (fast) or gear (fine) movement around the X-axis
• 140º Y-axis pivot (30º back 110º forward)
• Separate manual (fast) or gear (fine) movement around the Y-axis
• 360º Z-axis gear pan on top plate
• 360º manual pan on top and bottom plate
• X, Y and Z axes rotate about the same point
• When the X, Y and Z axes locking knobs are open, the PCF can move freely like a normal ball head.
• Adjustable gear friction
• Adjustable manual friction
• Arca compatible QR clamp
• 4 large bubble levels
• Durable stainless steel 3/8'' and 1/4'' tripod mounting options.

DIMENSIONS: Cambo PCF Camera Head
• Height 130mm (incl. QR plate)
• Width 110mm
• Depth 102mm
• Weight 1250g (excl. plate) /1300g (incl. plate)
• Payload 6kg (13.2lbs)

IN THE BOX:

• 1 x Cambo PCF Camera Head
