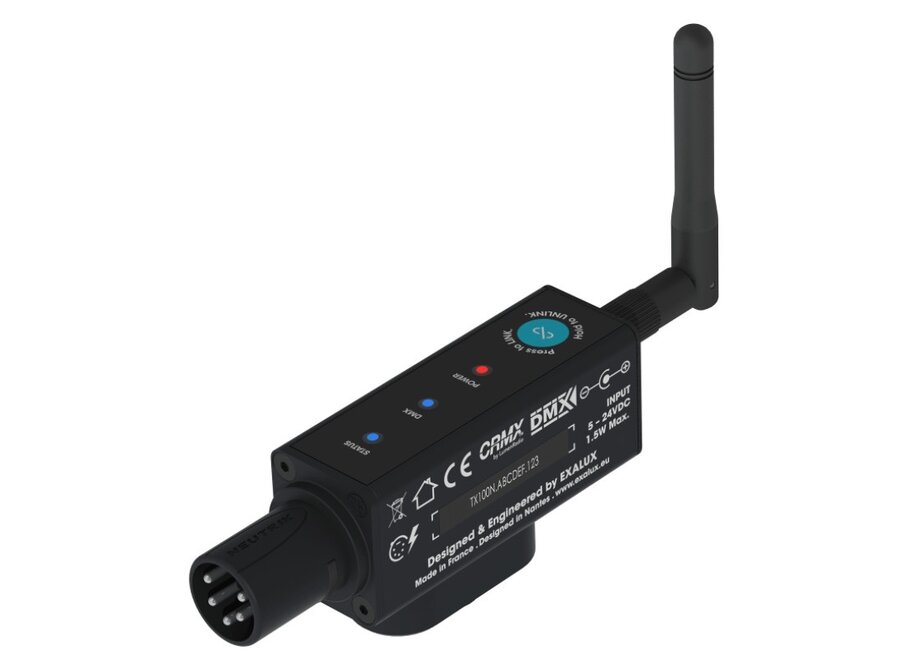

Exalux Connect TX100N Basic Kit

The Exalux Connect TX100N is an ultra-compact wireless DMX transmitter that can be used in studios or on location.

PRODUCT FEATURES: Exalux Connect TX100N Basic Kit
• Built-in LumenRadio CRMX™ transmitter 1 DMX universe
• Wide range DC power mode,
• PoD (Power Over DMX) compatible,
• Aluminum unibody housings,
• Industry standard Neutrik™ XLR connectors.
• CONNECT TX100N features PoD technology, allowing the unit to be powered via the XLR connector. The unit is fully compatible with all LumenRadio CRMX™ receivers, such as RX100S and RX200N.

TECHNICAL SPECIFICATIONS: Exalux Connect TX100N Basic Kit
• Power connection 2.0 x 5.5 mm DC connector
• Interface disconnect (switch), power, linked,
• DMX status (LED)
• Power consumption 1.5 W
• Housing / mounting Aluminum / M10
• IP rating IP30
• Certifications CE, RoHS
• Weight 185 g

OPERATING CONDITIONS
• Input Voltage Min: 4.5 VDC | Typ: 5 VDC | Max: 26 VDC
• Storage Temperature Min: -20 °C | Typ: 25 °C | Max: +75 °C
• Operating Temperature Min: -10 °C | Typ: 25 °C | Max: +55°C

RADIO INTERFACE
• Standard/Technology LumenRadio CRMX™
• Frequency 2.402 ~ 2.480 GHz
• Antenna Omnidirectional,
• 2.4 GHZ 2.0 dBi, SMA
• RF Output 20 dBm (100 mW)
• RF Modulation GFSK
• Range 500-1000 m
• (depending on environment)

DMX INTERFACE
• Protocol DMX512-A
• Universe Support 1
• DMX Frame Rate 0.8-830 Hz
• End-to-end Latency < 5 ms
• DMX Output Neutrik XLR 5-pin female

IN THE BOX:

• 1 x Exalux Connect TX100N Basic Kit
