Elinchrom Skyport Transmitter PRO for Nikon

Product description

Elinchrom Skyport Transmitter PRO for Nikon

The Elinchrom Skyport Transmitter PRO for Nikon is an advanced transmitter that triggers and controls Elinchrom & Rotolight strobes and lights.

Via the clear and clear display you can set the desired power, this can be per lamp individually or in groups. Depending on the flash model *, Hi-Sync (HS) or High Speed Sync (HSS) opted for a seamless flash sync down to 1/8000 sec! Switching between manual flash control and TTL is done automatically at the push of a button (except Elinchrom TTL models).

PRODUCT FEATURES: Elinchrom Skyport Transmitter PRO for Nikon

• Compatibility: with all Lighting Systems who're provided with an Elinchrom Skyport Receiver.

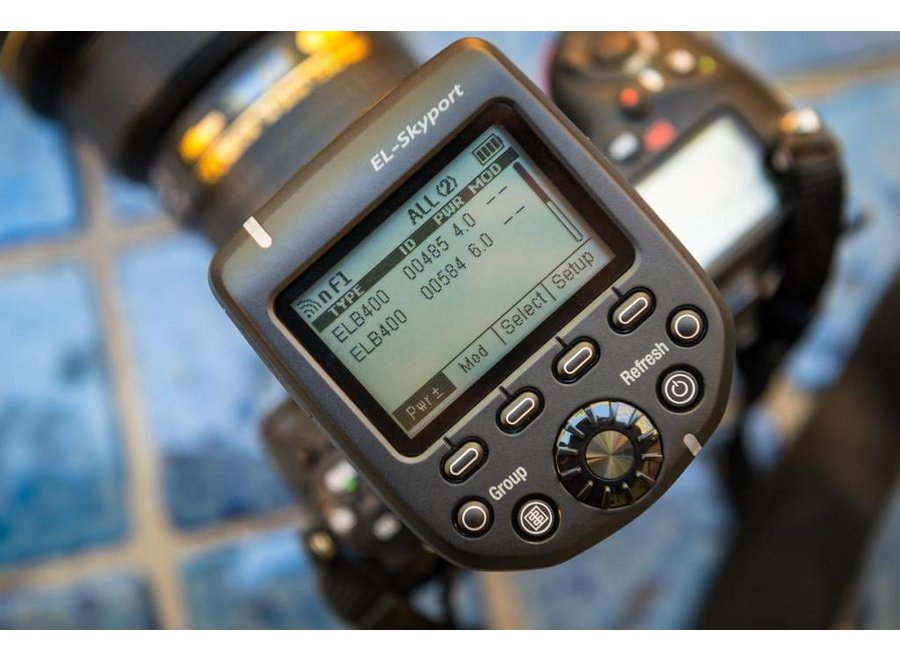

• Large graphic control display
• Backlight in green or red (green for Normal Sync Mode, red for Speed Sync Mode)
• Fast access buttons and rotating wheel for easy control
• Secure Hotshoe connection with bayonet locking system
• Standard 2 AA Batteries (Accepts rechargeable batteries)
• 2.5mm trigger jack output
• Firmware update with integrated Mini-USB socket
• 20 Skyport Remote channels / frequency channels choose between: Normal Sync mode & Speed Sync mode
• 4 Groups and ALL
• EL-Skyport Sync Modes
  •  Normal Sync Mode -> best distance range
  • Speed Sync Mode -> faster shutter speed on leaf cameras but reduces distance range
• Sync Modes:

  • Standard -> uses the middle contact of the hotshoe so it is limited to X-sync of the camera
  • HS (Hypersync) -> Sync up to 1/8000s, timing delay is automatic

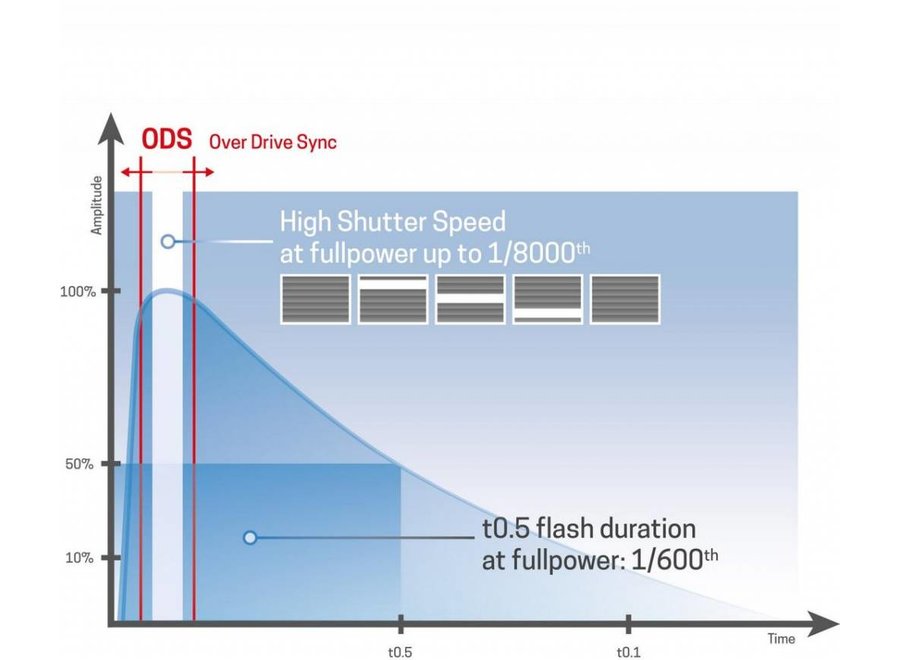

  • ODS (Over Drive Sync) -> fine tune the timing delay to optimize HiSync results (up to 2 more f-stops of light!)
  • Second curtain sync
• AF Light integrated
• Auto MOD
  * Shutter Mode -> half pressing the shutter of the camera turns the modelling lamp on
  * DOF Mode -> pressing the DOF button of the camera turns the modelling lamp on
• REMOTE Control** with automatic feedback from Elinchrom flash units
  * EL - flash units*** can be controlled "All" together, in "Groups" or "single" units
  * Flash power up & down
  * Modelling lamp on/off or power up & down
• Sleep mode and Auto OFF mode programmable
• Manufacturing RESET
• Distance range 200 m outdoors, 60 m indoors.

*For all newer Elinchrom flash units with 20 frequency channels
**For all Elinchrom flash units with integrated EL-Skyport Receiver and Transceiver
***For all RX units and newer ELB, ELC

Specifications: Elinchrom Skyport Transmitter PRO for Nikon
- Color (primary)Black
- Material PC ABS Plastic
- External Height760 mm
- External Length840 mm
- External Width690 mm
- Skyport TypeEL-Skyport Transmitter Plus HS - Canon
- Supplied With 2x AA Batteries, 1x Mini USB cable, Quick Guide
- Sync Voltage 3 V
- Weight (max.) 0.170 kg
- Weight (empty) 0.120 kg
