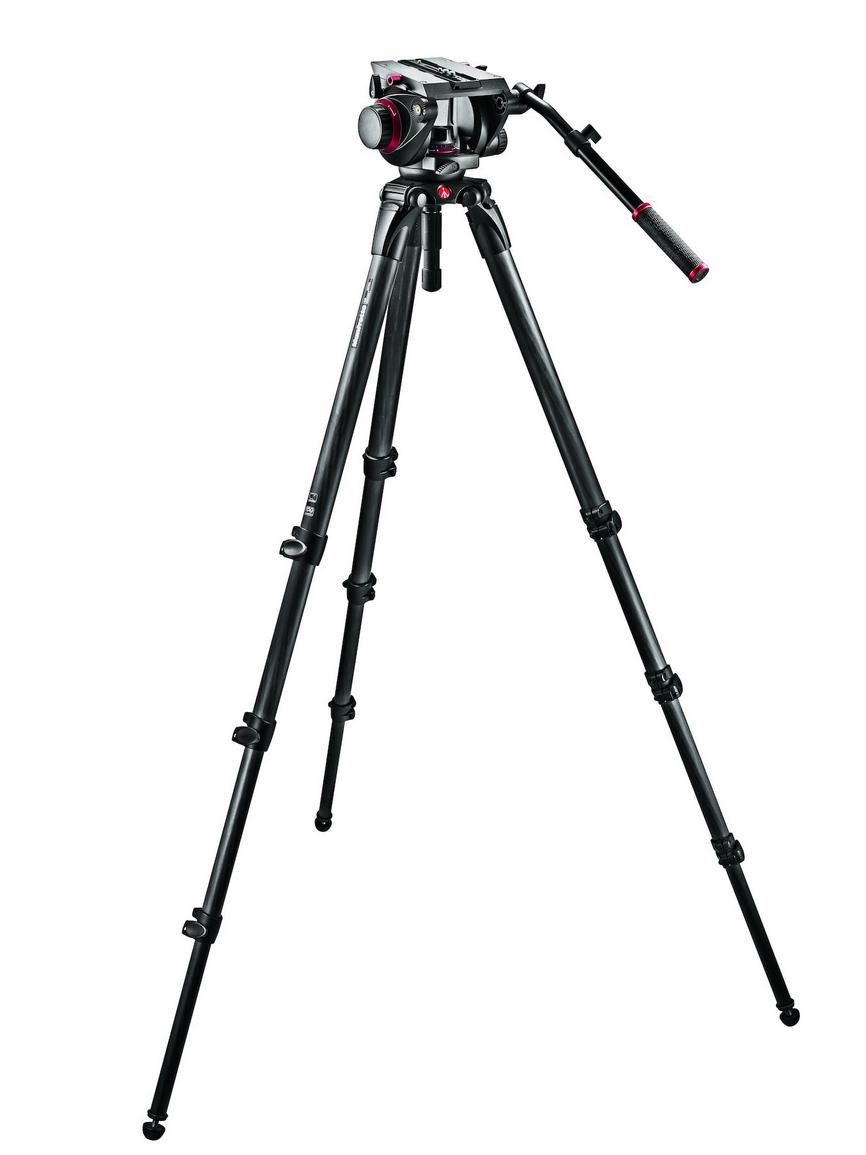

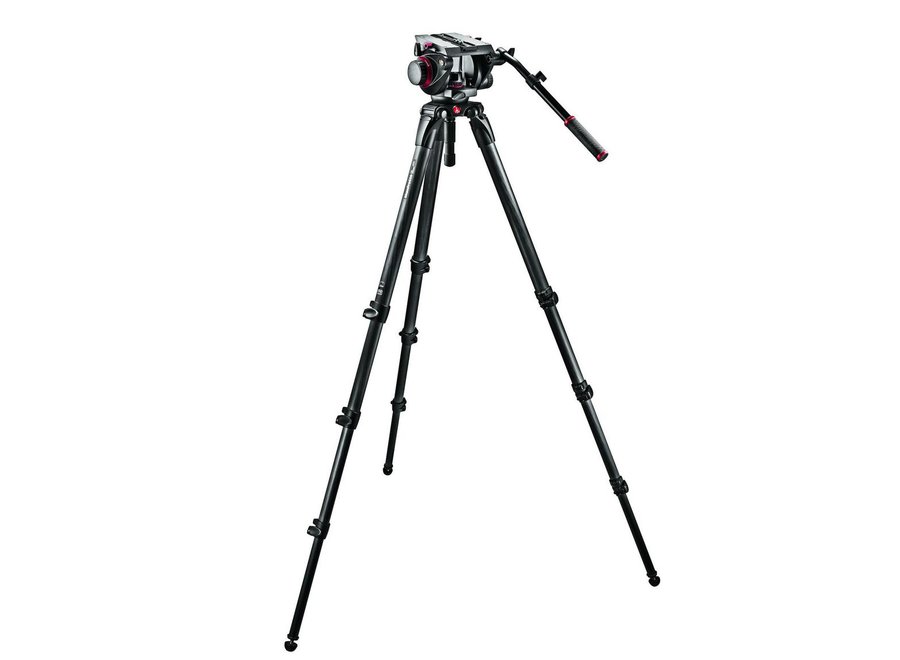

Manfrotto Pro Video Kit 509HD,536K

Product description

The Manfrotto Pro Video Kit 509HD,536K a lightweight, intuitive and versatile video system. It comes with the 509 fluid head with incorporated 100mm half ball, 536 carbon fibre single leg tripod, and the MB MBAG100PNHD tripod bag, giving you everything you need in one neat package.

The Manfrotto 509 fluid video head features variable fluid drag system in both pan and tilt movements, which allows smooth shooting, a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. And a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.7,5 Kg. Easy link 3/8" thread connections allows an external monitor or other accessory equipment to be fitted.
It also features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast.

The 536 carbon fibre tripod has a 100mm bowl perfect in combination with the 509 head for fast levelling and precision. The tripod enables you to select an angle to suit you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40,5cms to 217,5cms.

PRODUCT HIGHLIGHTS
- Weight 9607 g
- Collection/Series 509
- Material Aluminium, Carbon Fiber
- Safety Payload Weight 13.5 kg
- Min Height 40.5 cm
- Maximum Height 217.5 cm
- Head Type Video/Fluid Head
- Leg Sections 4
- Legs Tube Diameter 24.8, 29.2, 34.2, 39 mm
- Quick Release Yes
- Counterbalanced Weight 8.5 kg
- Center of gravity 125 mm
- Closed Length 87 cm
- Ball Flat 100 Ball
- Accessory Compatibility 502HLV; 509HLV; 114; 127V; 127VS
- Top Attachment 1/4? screw, 3/8? screw
- Powered by (batteries) Lithium
- Bubble Spirit Level (No.) 1
- Carrying Bag Included MB MBAG100PNHD
- Center Column no centre column
- Certifications WEEE; RoHS
- Colour Black
- Easy Link Yes
- Front Tilt -60° / +90°
- Leg Type Single
- Leg Angles 23°, 50°, 70°
- Leg Lock Type Flip Lock
- Maximum Working Temperature 60 C
- Minimum Working Temperature -20 C
- Pan Bar Included Yes
- Pan Drag continuously adjustable from 0 to max level
- Panoramic Rotation 360
- Plate Type 509PLONG
- Tilt Drag continuously adjustable from 0 to max level
- Variable fluid drag system on pan and tilt for smooth movements
- 4 step counterbalance system
- Set up quickly with intuitive sliding camera plate
- Inbuilt Ø100mm levelling half ball
- Carbon fibre single leg tripod
